HOT ! 完璧主義 USB Amazon.com: to Converter Bus CAN Adapter, Analyzer CAN 変換アダプタ

• Isolated CAN Analyzer USB to CAN BUS Adapter converter isolation USB-CAN USB2CAN conversion

USB to CAN USB-CAN debugger CAN Bus Analyzers
Overview:

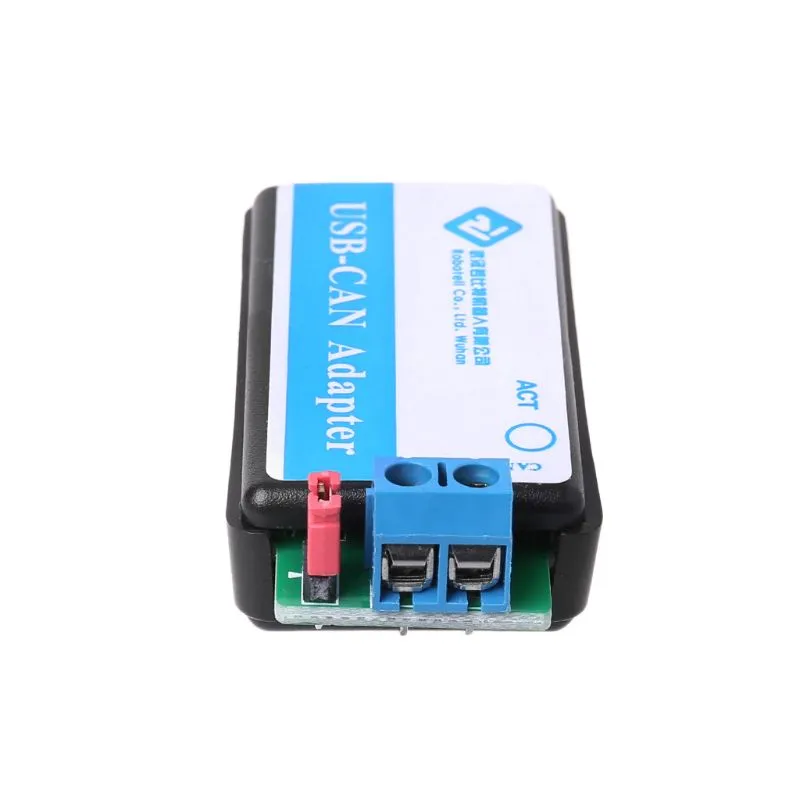

USB-CAN debugger is with a USB2.0 interface and CAN bus CAN debugger interface. ByUSB-CAN debugger , you can connect the computer through the USB interface to standard CAN network , can easily, quickly and accurately transmitted data acquisition, processing and so on.USB-CAN debugger
Supports any baud rate between 5Kbps-1Mbps , widely used to build fieldbus test laboratory, industrial control , intelligent buildings, automotive electronics and other fields. At the same timeUSB-CAN debugger
Small size, plug and play, safe, reliable, good stability , is the best choice for portable system users.
Application:
◆
CAN network teaching,
Develop,
Test ;
◆
Fast CAN network data collection,
Data analysis ;
◆
CAN network replace RS485 network ;
◆
Large Flow,
High-speed CAN communication networks;
◆
Industrial field CAN network data monitoring.
Product key performance indicators :
◆Isolate part of the circuit using DC / DC + high-speed optocoupler
(1000V), for industrial environments
;
◆
USB interface supports USB2.0, compatible with USB1.1;
◆
USB and CAN bus protocol conversion ;
◆
Support CAN protocol 2.0A and 2.0B active mode ;
◆
Support bi-directional transmission , CAN transceiver ;
◆
Stand by
CAN identifier standard format ( 11 ) and extended format ( 29 ) ;
◆
It supports data frame , remote frame format ;
◆
CAN controller baud rates up to 1Mbps, software configurable ;
◆
Supports automatic retransmission mode can be configured via software;
◆
It supports automatic offline management mode , configured via software ;
◆
Support 14 filters can be configured via software;
◆
PC software supports graphical multi-channel curve display
You can replace the logic analyzer to improve debugging , search efficiency issues;
◆It provides user
